28dB-es SMA GPS-antenna beszerzése - NEO-M8N repülõgép-vezérlõ VK-172 GPS-modul PX4 Quad SMA GPS-antennához

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
NEO-M8N Flight Controller VK-172 GPS Module PX4 for Quad SMA GPS Antenna
Description:
NEO-M8N Flight Controller
100% Brand New
A new generation GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.GPS Specs:
- Receiver type 72-channel u-blox M8 engine
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (NEO-M8N)
- Nav. update rate1 Single GNSS: up to 18 HZ
- Concurrent GNSS: up to 10 Hz
- Position accuracy2 2.0 m CEP
- Acquisition2 Cold starts: 26 s
- Aided starts: 2 s
- Reacquisition: 1.5 s
- Sensitivity2 Tracking & Nav: –167 dBm
- Cold starts: –148 dBm
- Hot starts: –156 dBm
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)3
- AssistNow Autonomous (up to 6 days)
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q),
- Crystal (NEO-M8M)
- RTC crystal Built-In
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for
- lowest noise figure (NEO-M8N/Q)
- Anti jamming Active CW detection and removal. Extra
- onboard SAW band pass filter (NEO-M8N/Q)
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
- Supported antennas Active and passive
- Odometer Travelled distance
- Data-logger For position, velocity, and time (NEO-M8N)
- Operating temp. –40° C to 85° C
- Storage temp. –40° C to 85° C (NEO-M8N/Q)
- –40° C to 105° C (NEO-M8M)
- RoHS compliant (lead-free)
- Qualification according to ISO 16750
- Manufactured and fully tested in ISO/TS 16949 certified production sites
- Uses u-blox M8 chips qualified according to AEC-Q100
- Supply voltage 1.65 V to 3.6 V (NEO-M8M)
- 2.7 V to 3.6 V (NEO-M8N/Q)
- Power consumption4 23 mA @ 3.0 V (continuous)
- 5 mA @ 3.0 V Power Save Mode
- (1 Hz, GPS mode only)
- Backup Supply 1.4 to 3.6 V
- NEO-M8N-0 Concurrent GNSS LCC Module,
- TCXO, flash, SAW, LNA,
- Timepulse Configurable 0.25 Hz to 10 MHz
Package Included:

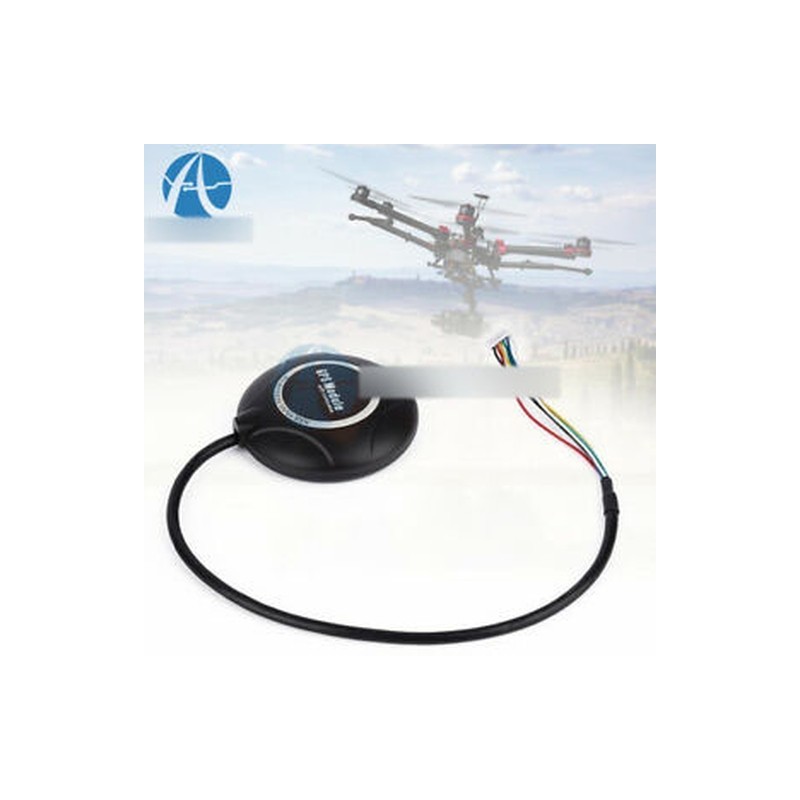

1PCS* NEO-M8N GPS Module Built-in Compass
NEO-M8N GPS Module

GPS Chip parameters:
Receiver type 72-channel engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q),
Crystal (NEO-M8M)
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
lowest noise figure (NEO-M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (NEO-M8N/Q)
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (NEO-M8N)
Operating temp. –40° C to 85° C
Storage temp. –40° C to 85° C (NEO-M8N/Q)
–40° C to 105° C (NEO-M8M)
RoHS compliant (lead-free)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites
Uses u-blox M8 chips qualified according to AEC-Q100
Supply voltage 1.65 V to 3.6 V (NEO-M8M)
2.7 V to 3.6 V (NEO-M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 Hz, GPS mode only)
Backup Supply 1.4 to 3.6 V
NEO-M8N-0 Concurrent GNSS LCC Module,
TCXO, flash, SAW, LNA,
Timepulse Configurable 0.25 Hz to 10 MHz
Package Included:
1PC*For PX4 Pixhawk V2.4.5 APM2.56 APM NEO-M8N Flight Controller GPS Module VK-172 USB GPS
Supported operating systems: Windows 10 8/7/Vista/XP
VK-172 automatically adapt the baud rate, the baud rate has any data output
Support Google Earth
C / A code, 1.023MHz stream
Receive Band: L1 [1575.42MHz]
Tracking Channels: 56
Support DGPS [WAAS, EGNOS and MSAS]
Note:It can support Windows sytem and EMGRAND car, but it can not support android system.Positioning performance:
2D plane: 5m [average]
2D plane: 3.5m [average], has DGPS auxiliary.
Drift: <0.02m / s
Timing Accuracy: 1us
Reference coordinate system: WGS-84
Maximum altitude: 18,000 m
Maximum speed: 500m / s
Acceleration: <4gElectrical properties:
Tracking sensitivity:-162dBm
Acquisition sensitivity:-160dBm
Cold Start Time: 29s [average]
Warm start time: 28s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]
Operating temperature:
-30 ℃ to 80 ℃NOTE: The default output is the product GPS protocol data. You can test the software or serial commands to modify switch PS / GLONASS protocol data
It does not support USB 3.0Package Included:
1PC*VK-172 GMOUSE USB GPS/GLONASS USB

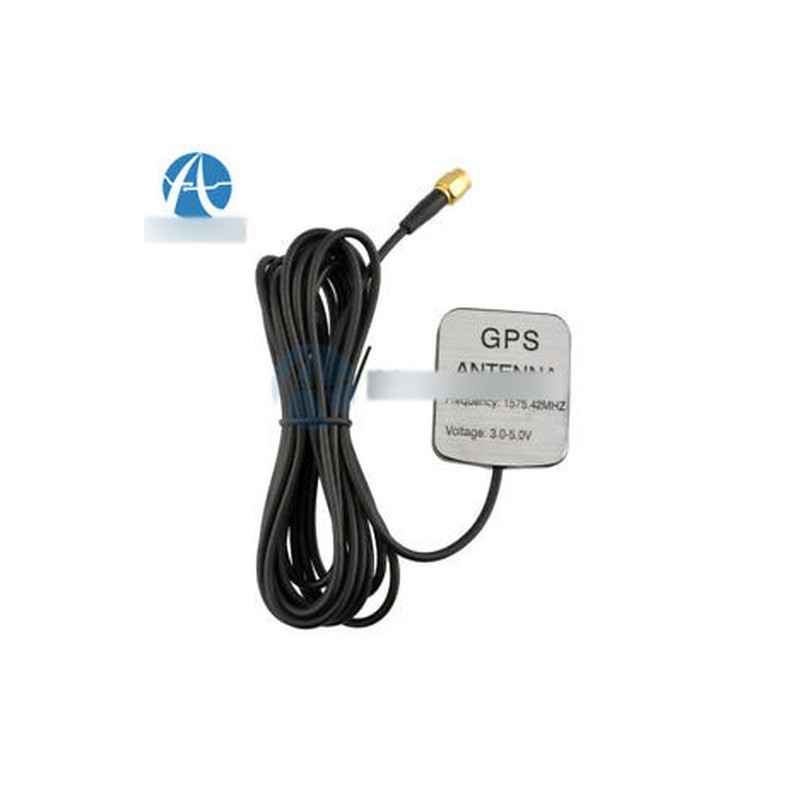

28dB Gain SMA GPS Antenna
3M Male GPS Active Antenna Aerial Connector Cable
Help your GPS to get stronger signal
Picks up your position rapidly
Easy to install: this antenna has a magnetic base which can adhere to any metal surface
Ready to plug in and use
Specification:
Connector: Male
Frequency Range: 1575.42MHz
Voltage: 3~5V
DC current: 10mA Max
Polarization: Circular (RH)
LNA Gain (Without cable): 28dB typ.
Noise Figure: 1.5dB typ.
Operating Temperature (Deg.C) -45~ 85
Storage Temperature (Deg.C) -50~ 90
Humidity: 100%
Weatherproof: Yes
Cable length: 3 meters
Size: 45 x39 x13 mm (main unit)Package Included:
1PC*GPS Antenna
